| Hàng hiệu: | LeiKan |
| Số mô hình: | LKST-NSC010 |

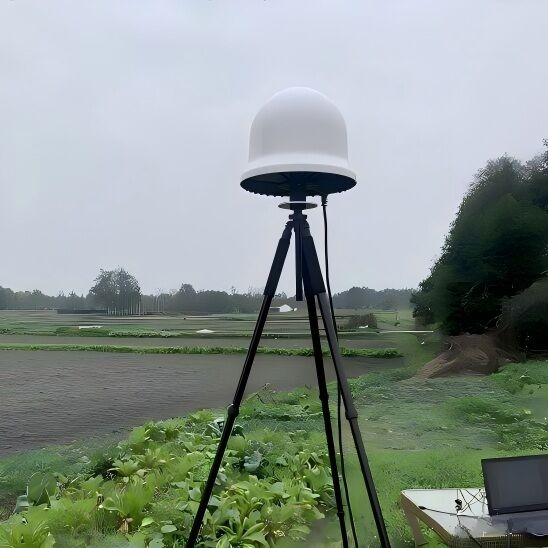

The is a stationary navigation-spoofing system designed for counter-UAV operations. It synthesizes and radiates GNSS signals that are bit-for-bit identical to authentic on-orbit satellite constellations. By position-spoofing, velocity-spoofing and time-spoofing, the system manipulates any UAV that relies on GPS/GLONASS (and optionally Galileo or BeiDou) for navigation. Typical outcomes include forced landing, expulsion, guided diversion to a predetermined location, or prevention of take-off within a protected zone.
The device has low radiation power and has no impact on the surrounding electromagnetic environment, which can prevent secondary damage caused by high-power electromagnetic suppression, such as the falling of a drone carrying a bomb. Widely used in refineries, oil depots, gas stations and other places.
It can be connected to various types of unmanned aerial vehicle detection and countermeasures equipment, such as intelligent perception detection, navigation deception control, wireless voltage based interference interception, etc. Having customizable unmanned and automated disposal strategies to meet the needs of various fields for low altitude security of drones
| Parameter | Value |
|---|---|
| Operating Bands | GPS-L1: 1575.42 MHz ± 1.023 MHz |
| GLONASS-L1:1602 MHz + N × 0.5625 MHz ± 0.511 MHz (N = −7 … +6) | |
| Galileo-E1: 1575.42 MHz ± 12.276 | |
| MHzBeiDou-B1:1561.098 MHz ± 2.046 | |
| MHz(customizable) | |
| Operating Mode | Real-time generation of GPS-L1 and GLONASS-L1 spoofing signals; optional generation of Galileo-E1 and BeiDou-B1 spoofing signals |
| Spoofing Range | 0.5–1 km at 10 mW (EIRP)Greater range achievable by increasing transmit power |
| Spoofing Response Time | ≤ 10 s (within effective range) |
| Effective Spoofing Angle | Horizontal: 360°Vertical: 0–90° |
| Simultaneous Counter-UAV Capacity | Unlimited |
| RF Transmit Power | 10 mW (EIRP) base unit |
| Continuous Operation | ≥ 24 h |
| Dimensions | 420 mm × 370 mm |
| Weight | ≤ 10 kg |
No fly zones: important sensitive locations such as airports, prisons, and nuclear industry facilities.
Important infrastructure: such as petroleum and petrochemical, power, water conservancy engineering, water source areas, scenic spots, etc
Sensitive areas: important security locations, accompanying political figures for protection, performance rehearsals, archaeological sites, etc.
